We Manufacture For You

From remote I/O to CPU modules, with our tested and matured technologies, we meet your electronic board/device needs.

Our services include printed circuit board design and assembly, electronic box design and manufacturing, system assembly, and functional testing.

We supply from 1 piece to 6000 pieces, from prototype to mass production.

Our Example Solutions

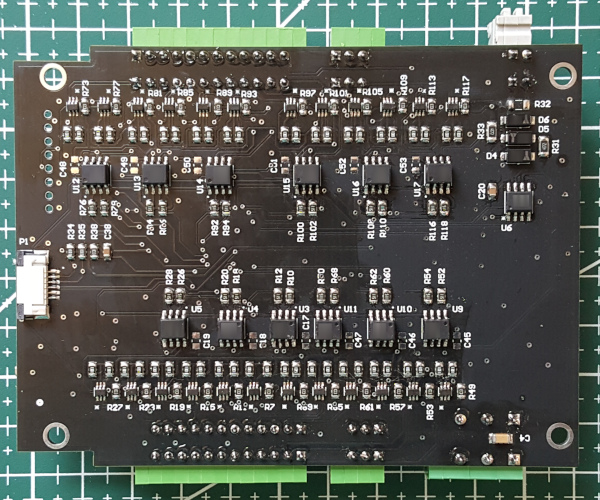

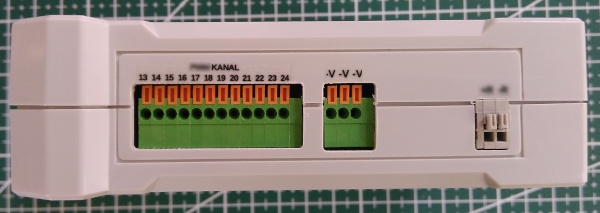

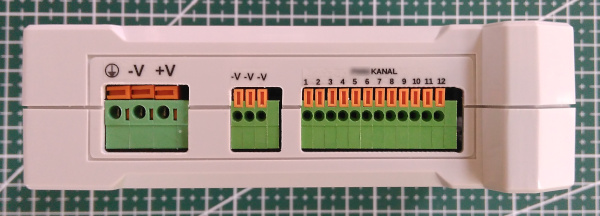

Remote I/O: 24 Channel PWM Output

	Modbus RTU Baudrate, parity, stop bit adjustable Isolated and Independent Isolated and Independent Output: 12~24V Frequency: 20Hz~160KHz Duty Cycle: 1~99%
	LEDs and Reset Key Power, operation, Modbus active and output active LEDs Reset settings with the reset button Additional Connections Ground connection 3 -V connections at the top and bottom

Modbus RTU

Baudrate, parity, stop bit adjustable

Isolated and Independent

Isolated and Independent
Output: 12~24V
Frequency: 20Hz~160KHz
Duty Cycle: 1~99%

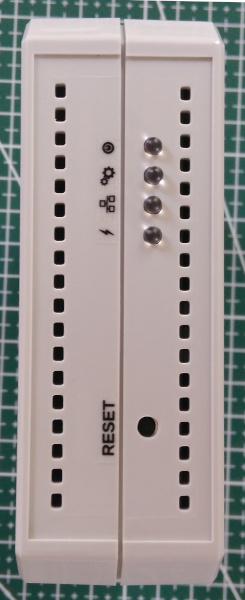

LEDs and Reset Key

Power, operation, Modbus active and output active LEDs
Reset settings with the reset button

Additional Connections

Ground connection
3 -V connections at the top and bottom

Can be used with rail-mounted box

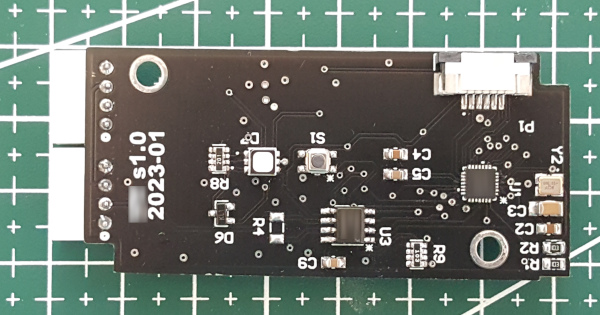

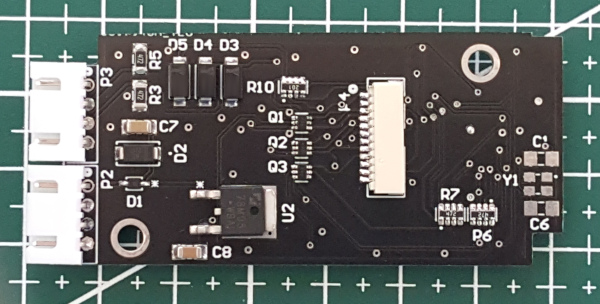

Modbus Sensor: 3 Channel Analog Input

	Analog Input 3 Channel 12 Bit Modbus RTU Dual connector for chain connection
	LEDs and Reset Key One RGB LED Reset settings with the reset button

Analog Input

3 Channel 12 Bit

Modbus RTU

Dual connector for chain connection

LEDs and Reset Key

One RGB LED
Reset settings with the reset button

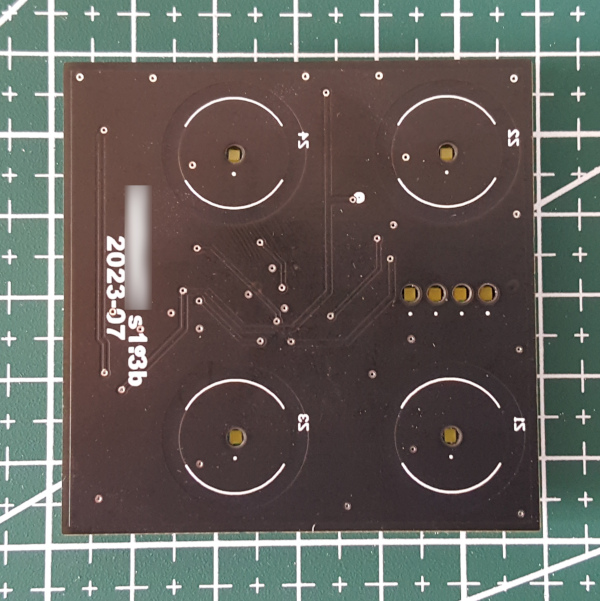

Touch Panel: 4 Buttons & Serial I/O

	Touch Buttons 4 backlit Multi-touch Can be used with 3mm thickness plastic or wood Additional LEDs 4 level LEDs Serial I/O To communicate with other cards

Touch Buttons

4 backlit
Multi-touch
Can be used with 3mm thickness plastic or wood

Additional LEDs

4 level LEDs

Serial I/O

To communicate with other cards

Phased Agile Implementation

Our Capabilities

	Peer-to-Peer Network Devices and Softwares Point-to-point serverless direct encrypted communication PC, embedded system or web-based application according to needs.
	Mesh Network Devices and Softwares It collects data from machines, sensors and buttons and sends commands. With low energy mode it can be battery-powered and no additional cables are required.
	Modbus RTU Network Devices and Softwares It is used to establish wired communication in real time. It has a communication distance of 1200 meters.
	MCU and CPU-Based Cards From an 8-bit 8MHz microcontroller to a 32-bit 1.2GHz processor, ready-to-use cards that suit your needs.
	Industrial Analog and Digital I/O Cards 12 / 16 / 24 bit analog current and voltage measurement and digital I/O cards.
	LCD Panel Drivers 5" to 10.4" LCD panel drivers with hardware video decoder and wired/wireless network interface.
	Imaging Sensor Boards Visual control with visible light, thermal-IR and Time-of-Flight sensor boards
	Operating System Applications Various embedded system and server applications available on FreeRTOS, HAL-OSAL, Wasm, Linux and Windows
	Electronics Design Pool Large and tested PCB pool and ready integrated stock
	Genuine and Comprehensive Software Library From basic I/O to USB device, from embedded server to gateway, fast & cost-effective solutions with tested ready-to-use libraries
