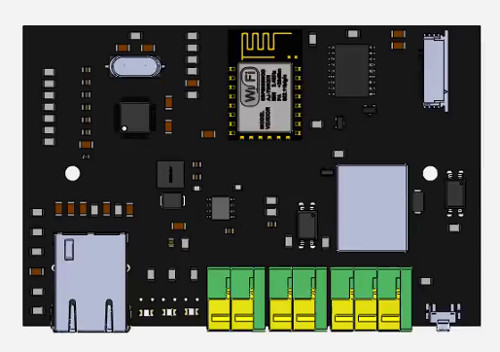

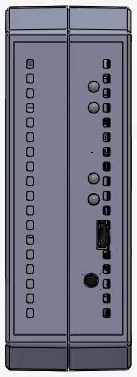

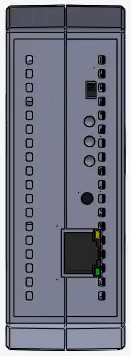

NR-WEB
Electrical
| Power | 12/24VDC - 1A |
|---|---|
| Network (Wired) | 10/100BASE-T |
| Network (Wireless) | 802.11b/g/n WPA1/2 |
| Antenna | Internal (on the top) |
Remote Connection
| Architecture | Peer-to-peer (P2P) |
|---|---|
| Encryption | TLS + DTLS (AES-256 & RSA-2048) |
Mechanical
| Dimensions | 10 x 12 x 3cm |
|---|---|
| Weight | 95gr |
| Mounting | DIN Rail |
Environment
| Operating Temp | -10°C ~ 40°C |
|---|---|
| Rel. humidity (non-condensing) | %10~%90 |
PC Reqs.
| Internet connection | Static or dynamic |
|---|---|

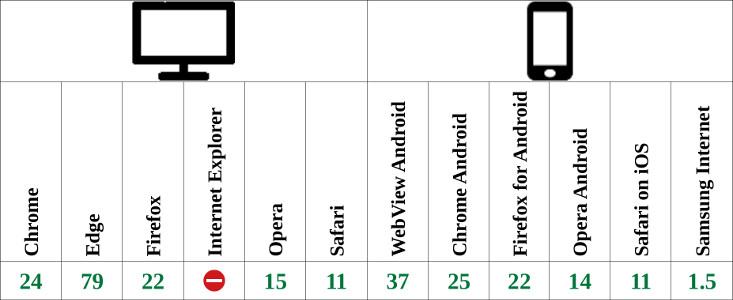

Browser Version
|
|
NR-WEB
NR-WEB is a 100% web-based device that transfers data through a web browser (Chrome, Edge, Firefox, etc.). NR-WEB does not require external software or servers. The user connects directly to NR-WEB by logging in to the "Portal" on the ML-VPN site. Through the portal, it can see the I/O statuses of NR-WEB and send commands.
